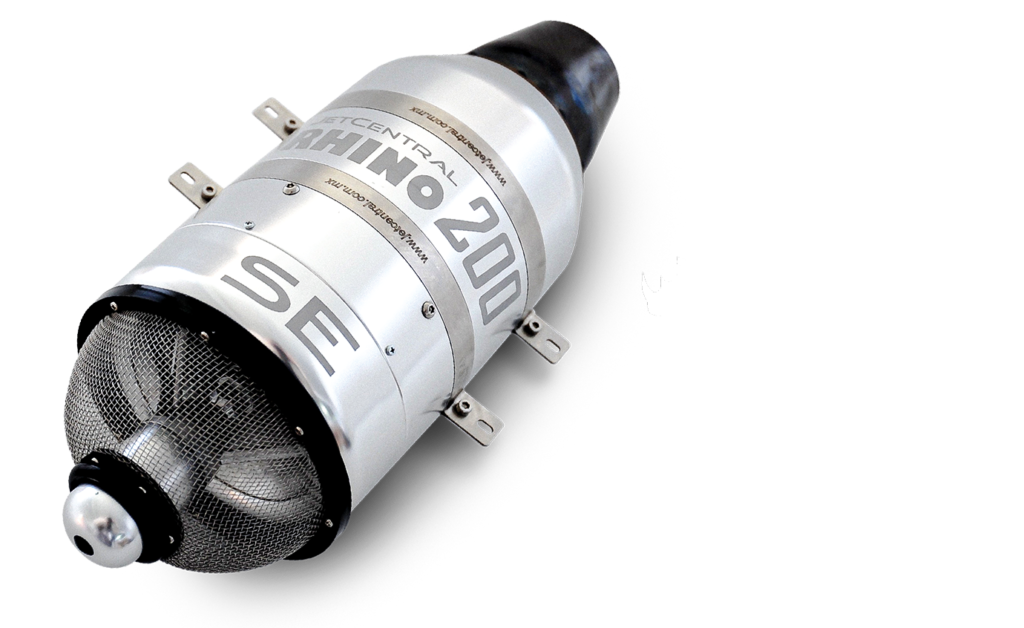

RHINO 200 SE SERIES
€3.574,50
Skip to product information
RHINO 200 SE SERIES
€3.574,50
RHINO
200 SE SERIES
The Jet Central turbines are in its own right a single stage centrifugal flow gas turbine engine, configured to operate as a Turbojet engine for use mainly, but not exclusively, in remotely piloted fixed wing aircraft. Such aircraft and their control systems must be appropriately designed and built to be compatible with the performance of the Turbojet engine.
SPECIFICATIONS
| Thrust |
200 Newtons (45 Lbs) @ 121,000 RPM
|
| Idle Thrust |
6 Newtons (1.34 Lbs) @ 32,000 RPM
|
| RPM Range |
32,000 – 121,000
|
| Weight |
1.78 Kg (3.93 Lbs)
|

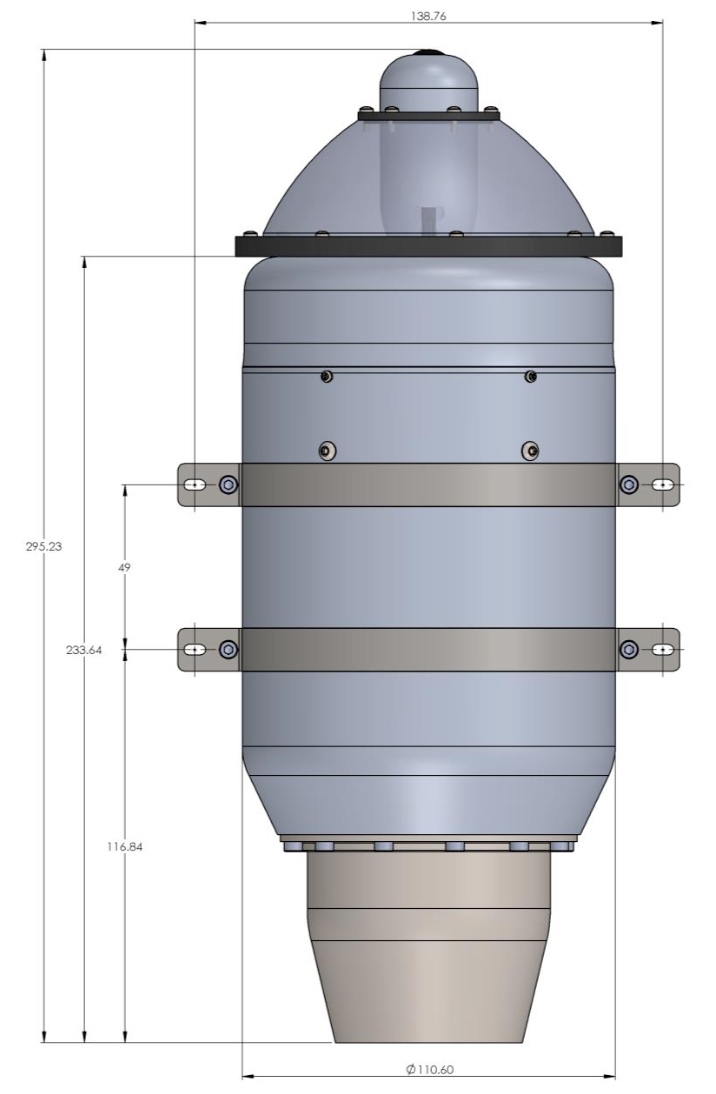

| Diameter |
111.0 mm (4.37”)
|
| Length |
302 mm (11.89”)
|
| Exhaust Gas Temperature |
500º C – 700º C
|
| Fuel Consumption | 0.55 Lt/min (19.5 Oz/min) @121 k |
| Fuel | Kerosene / Jet A / Diesel |
Service Center in FRANCE : Oliver Kohler (jeolkohler@gmail.com)
