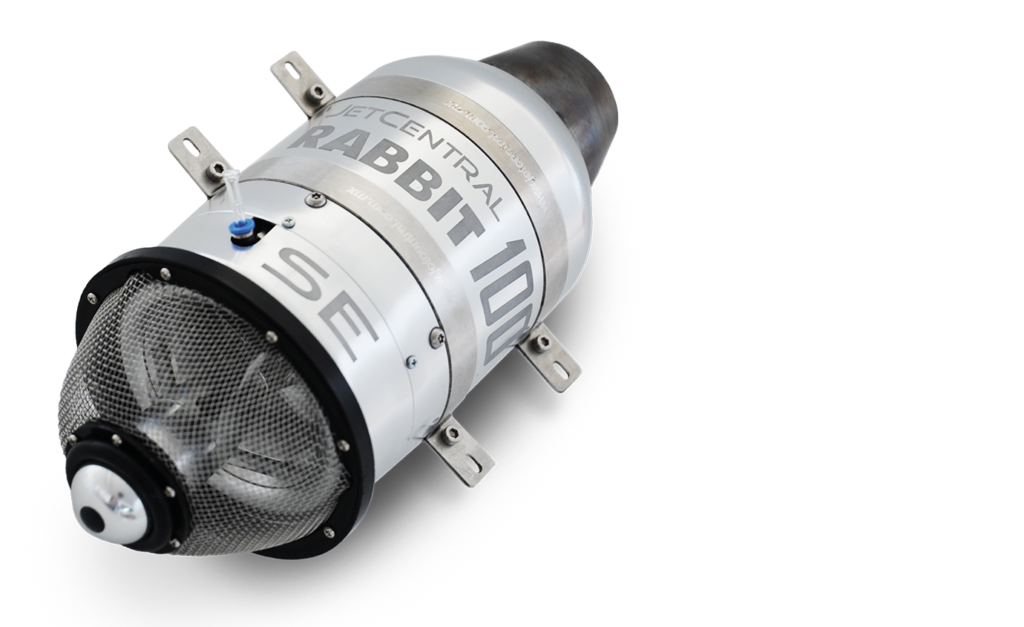

RABBIT 105 SE SERIES
€2.523,75
RABBIT
105 SE SERIES
The Jet Central turbines are in its own right a single stage centrifugal flow gas turbine engine, configured to operate as a Turbojet engine for use mainly, but not exclusively, in remotely piloted fixed wing aircraft. Such aircraft and their control systems must be appropriately designed and built to be compatible with the performance of the Turbojet engine.
SPECIFICATIONS
| Thrust |
105 Newtons (24 lbs) @ 152,000 RPM
|
| Idle Thrust |
4.7 Newtons (1 Lbs) @ 42,000 RPM
|
| RPM Range |
42,000 – 152,000
|
| Weight |
1.1 Kg (2.2 Lbs)
|

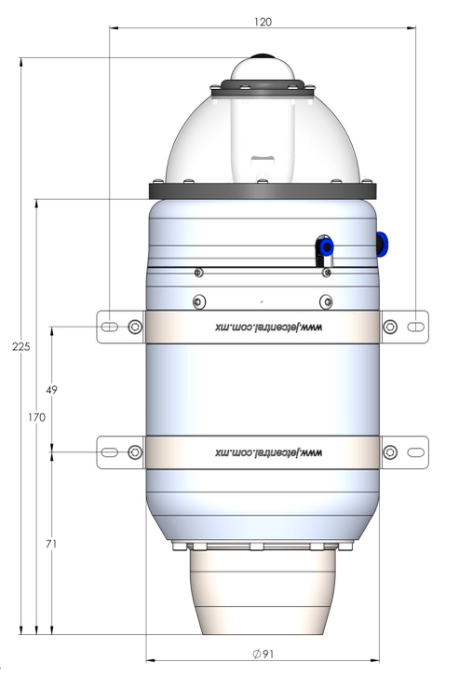

| Diameter |
91.0 mm (3.58”)
|
| Length |
245 mm (10.67”)
|
| Exhaust Gas Temperature |
500º C – 700º C
|
| Fuel Consumption | 0.36 Lt/min (12.2 Oz/min) @152 k |
| Fuel | Kerosene / Jet A / Diesel |
Service Center in FRANCE : Oliver Kohler (jeolkohler@gmail.com)
