JETI TELEMETRY V2 LUA

ISO 9000 International Standard of Quality Company making a quality product.

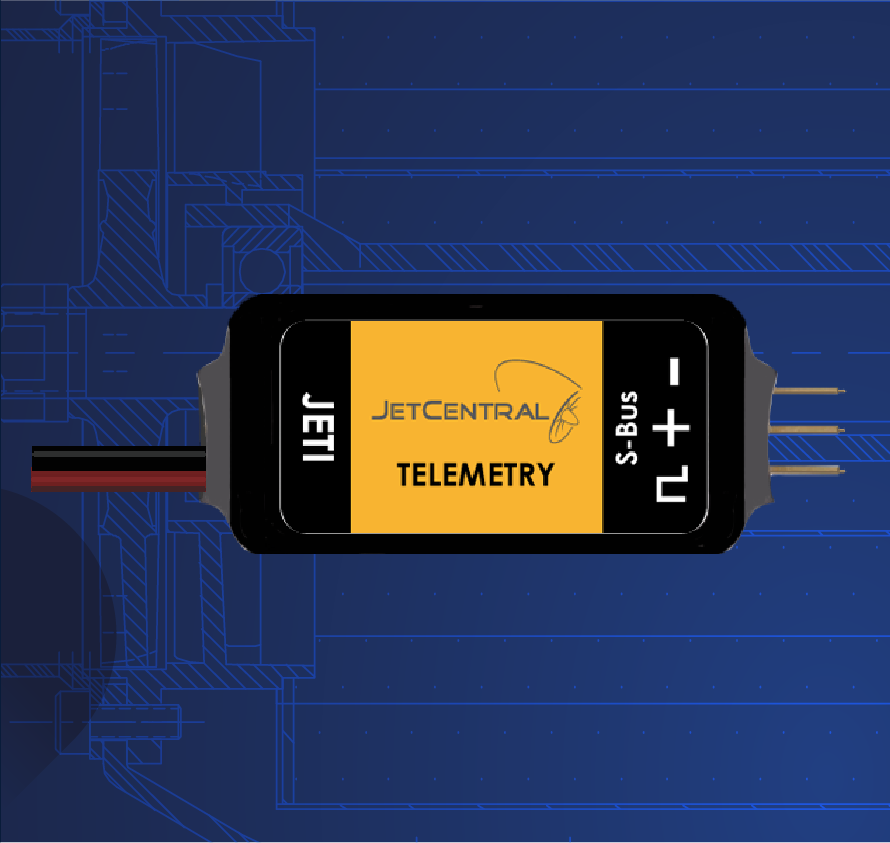

• Small and lightweight telemetry adapter; you will get all the information from directly the turbine to your transmitter
• Supported System: Jeti
• Size: 17mm x 37mm
• Weight: 6g
• Consumption: 32mA
• Jet Central telemetry display for Jeti DC/DS-24, DS-12 Transmitters

REQUISITES

INSTALLATION

For single-engine:

• Download JCHDT.lc to Apps folder in your transmitter
• Download file for the DS/DC-24/16G2/14G2 or DS-12
• Or download file for the DC/DS-16G1
• Download /JetCentral/CF.png to Apps/JetCentral/ folder in your transmitter (If the folder doesn’t exist, create a folder called JetCentral inside the Apps folder)
• Download the image file for the DS/DC-24 or DS-12
• Go to: Menu > Applications > User Applications
• Press [F3][+] and select JCHDT.lc
• You can configure the App in Menu > Timers/Sensors > JetCentral HDT
• Add “JetCentral HDT” in Menu > Timers/Sensors > Displayed Telemetry for full telemetry display or…
• Add “JetCentral MFD” for a small telemetry display

For multi-engine:

• Download JCHDT.lc to Apps folder in your transmitter
• Download file for the DS/DC-24/16G2/14G2 or DS-12
• Download /JetCentral/CFTwin.png to Apps/JetCentral/ folder in your transmitter (If the folder doesn’t exist, create a folder called JetCentral inside the Apps folder)
• Download the image file for the DS/DC-24 or DS-12
• Go to: Menu > Applications > User Applications
• Press [F3][+] and select JCHDT.lc
• You can configure the App in Menu > Timers/Sensors > JetCentral HDT
• Add “JetCentral HDT” in Menu > Timers/Sensors > Displayed Telemetry for full telemetry display or…
• Add “JetCentral MFD” for a small telemetry display

You can enable “Demo Mode” in App settings and simulate values with:

• [Sb] Status
• [P5] Fuel
• [P6] RPM
• [P7] EGT
• [P8] ECU Batt

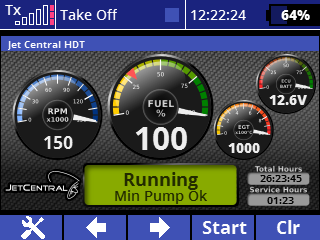

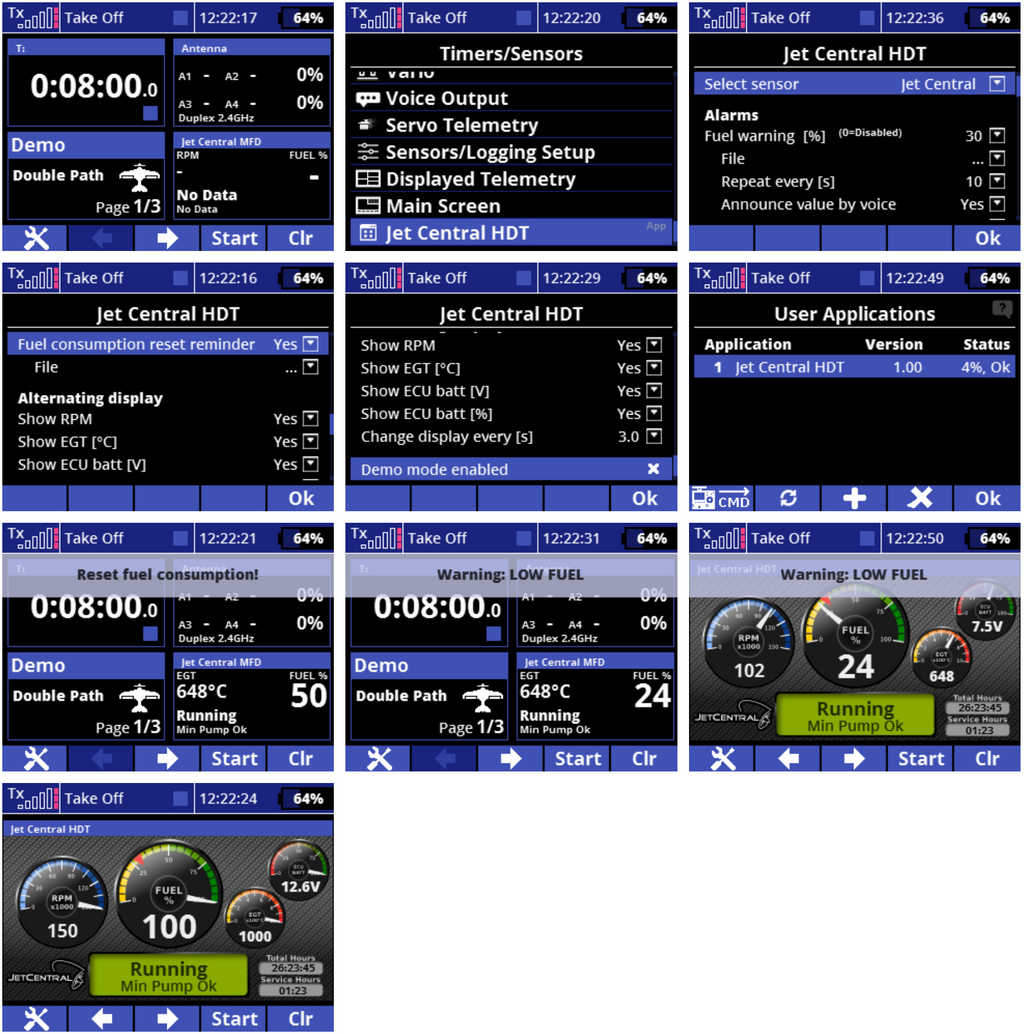

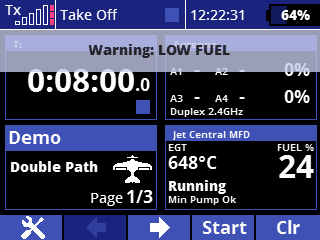

SCREENSHOTS

DC/DS 24 & 12

DC-DS 16V1

The LUA app was developed and is provided by JetCentral.
