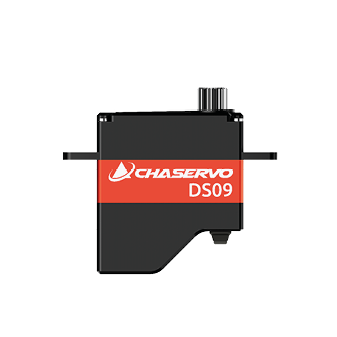

CHASERVO DS09
€35,49
| Brand | Chaservo |
|---|---|
| Version | DS09 |
| Dimensions | 0.93 x 0.35 x 1.08 in (23.5 x 9 x 27.5 mm) |
| Weight | 0.42 oz (12 g) |
| Rated Voltage | DC 7.4V |
| Voltage Range | DC 3.3 – 9.0V |
| Output Shaft Spline | 25T, 0.196 in (5 mm) |
| Holding Torque @ 6.0V | 97.21 oz·in (7.0 kg·cm) |
| Holding Torque @ 7.4V | 111.09 oz·in (8.0 kg·cm) |
| Holding Torque @ 8.4V | 124.98 oz·in (9.0 kg·cm) |
| Output Torque @ 6.0V | 69.43 oz·in (5.0 kg·cm) |
| Output Torque @ 7.4V | 6.0 kg·cm |
| Output Torque @ 8.4V | 90.27 oz·in (6.5 kg·cm) |
| No-load Speed @ 6.0V | 0.13sec/60° |
| No-load Speed @ 7.4V | 0.11sec/60° |
| No-load Speed @ 8.4V | 0.10sec/60° |
| max. Current @ 6.0V | 0.90 A |
| max. Current @ 7.4V | 1.15 A |
| max. Current @ 8.4V | 1.25 A |
| Case Material | High Quality Technopolymer and Aluminium |
| Gear Set Material | Hardened Steel + Brass |
| Ball Bearing | 2 x Ball Bearing |
| Position sensor | Potentiometer |
| Motor | Hollow Cup DC Motor |
| Working Frequency | 1520 μs / 20 KHz |
| Pulse Range | 900µs-2100µs |
| Programmable | Ja |
