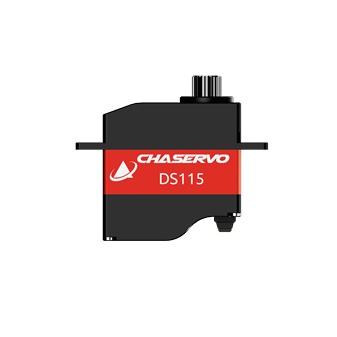

CHASERVO DS115
€30,41
| Dimensions | 0.90 x 0.45 x 0.96 in (23 x 11.5 x 24.5 mm) |
|---|---|
| Weight | 0.52 oz (15 g) |
| Rated Voltage | DC 7.4V |
| Voltage Range | DC 4.0 – 9.0V |
| Output Shaft Spline | 25T, 0.196 in (5 mm) |
| Holding Torque @ 3.5V | 49.99 oz·in (3.6 kg·cm) |
| Holding Torque @ 6.0V | 76.38 oz·in (5.5 kg·cm) |
| Holding Torque @ 8.4V | 83.32 oz·in (6.0 kg·cm) |
| Output Torque @ 3.5V | 44.99 oz·in (3.24 kg·cm) |
| Output Torque @ 6.0V | 68.74 oz·in (4.95 kg·cm) |
| Output Torque @ 8.4V | 74.99 oz·in (5.40 kg·cm) |
| Case Material | High Quality Technopolymer and Aluminium |
| Gear Set Material | Metallgetriebe |
| Position sensor | Potentiometer |
| Motor | Coreless DC |
| Ball Bearing | 2 x Ball Bearing |
| Working Frequency | 1520µs/333Hz |
| Pulse Range | 900µs-2100µs |
| Programmable | Ja |
